Arvin 540T

Arvin 540T
    Broadcast Receiver
  • Manufacturer: "Arvin" - brand of Noblitt-Sparks Industries
  • Date: 1951
  • Size: 8.25 x 5 x 4 inch / 210 x 127 x 102 mm
  • Tubes: 12SA7GT, 12SQ7GT, 50L6GT, 35Z5GT
  • Frequency Range: MW
  • Comments: Tablemodel with metal (painted) case. Power type and voltage: AC/DC-set / 105-125 Volt

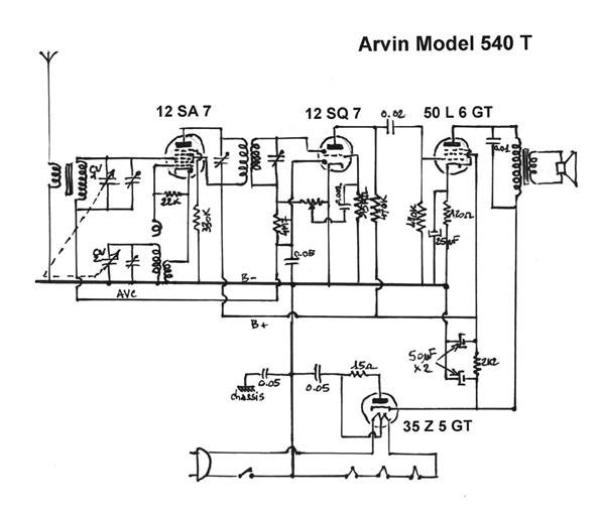

Arvin 540T diagram
